Year 10 Interactive Maths - Second Edition

Using the Tangent Ratio

Example 7

Find the value of the pronumeral in the following diagram, correct to 2 decimal places.

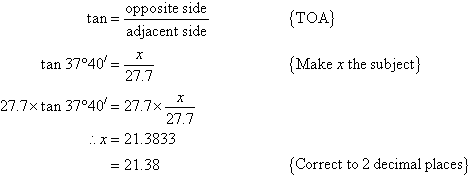

Solution:

Example 8

Find the value of the pronumeral in the following diagram, correct to 2 decimal places.

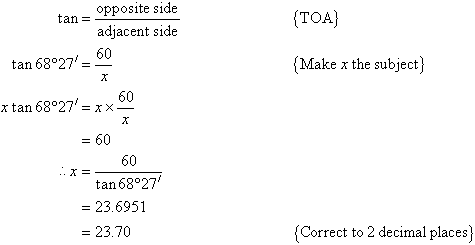

Solution:
